Volcano Watch: Geologic history of Mauna Loa’s southeast flank revealed in new map

(Volcano Watch is a weekly article written by scientists at the U.S. Geological Survey’s Hawaiian Volcano Observatory.)

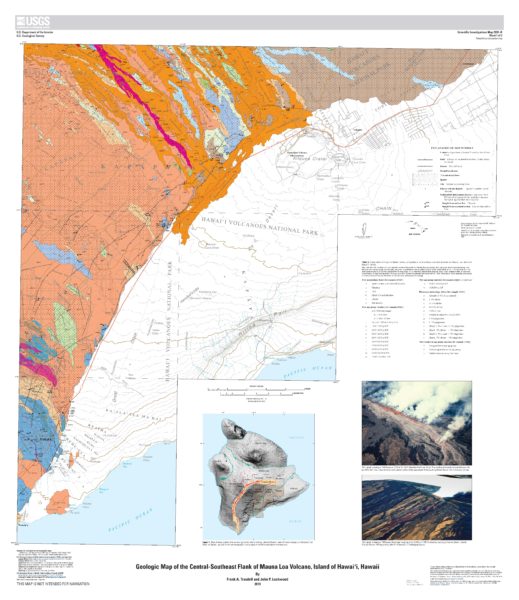

The recently published “Geologic map of the central-southeast flank of Mauna Loa” (https://pubs.er.usgs.gov/publication/sim2932B), shown here, uses color to depict ages of geologic units, with warm colors denoting younger units and cool colors indicating older units. It is the second in a series of maps that will cover Mauna Loa. The first, a geologic map of the northeast flank of the volcano, was published in 2017 and is posted at https://pubs.er.usgs.gov/publication/sim2932A. USGS map.
The recently published “Geologic map of the central-southeast flank of Mauna Loa” (https://pubs.er.usgs.gov/publication/sim2932B), shown here, uses color to depict ages of geologic units, with warm colors denoting younger units and cool colors indicating older units. It is the second in a series of maps that will cover Mauna Loa. The first, a geologic map of the northeast flank of the volcano, was published in 2017 and is posted at https://pubs.er.usgs.gov/publication/sim2932A. USGS map.

The recently published “Geologic map of the central-southeast flank of Mauna Loa volcano” is the culmination of years of fieldwork by the U.S. Geological Survey. This updated map supersedes the “Geologic Map of the Island of Hawaiʻi” (1996) and the “Geologic Map of the State of Hawai‘i” for the Mauna Loa region.

The new map encompasses 195 square miles (506 sq km) of the southeast flank of Mauna Loa—an area equivalent to the islands of Kaho‘olawe and Lānaʻi combined!—and ranges from an elevation of 10,350 feet (3155 m) to sea level.

It includes areas adjacent to and downslope of Mauna Loa’s Northeast Rift Zone, as well as regions east and directly downslope of Moku‘āweoweo, the volcano’s summit caldera. From high on Mauna Loa’s east flank, the mapped area extends toward HawaiÊ»i Volcanoes National Park and the community of Volcano (population of approximately 2,000 residents) in the northeast. At the southern boundary of the mapped area is Punalu‘u Bay.

Lava flows from the middle and upper reaches of the Northeast Rift Zone dominate the northern part of the map, comprising about 40 percent of the total area. The map’s southern portion contains flows from the upper Southwest Rift Zone that make up about 2 percent of the total area. Lava from the upper reaches of both rift zones generally forms narrow flow lobes.

The remaining 58 percent of the map (center area) consists of lava flows from the summit of Mauna Loa. In contrast to flows from the rift zones, lava flows derived from the summit caldera form voluminous, broad expansive sheets of pāhoehoe that cover large areas. ‘A‘ā flows occur in this area but are inconsequential when compared to the pāhoehoe flows.

Mauna Loa, the largest active volcano on Earth, is known to have erupted 33 times since written descriptions became available in 1832. Some eruptions were preceded by only brief seismic unrest, while others followed several months to a year of increased seismicity.

Most Mauna Loa eruptions begin in its summit area at or above the 12,000-ft (3658-m) elevation. The central-southeast flank has not been the source of any volcanic activity, although two historical eruptions that began along the Northeast Rift Zone sent flows into the mapped region in 1880 and 1984.

The map shows the distribution of 96 eruptive units (flows) separated into 15 age groups ranging from more than 30,000 years before present to 1984. The map also shows the relationships between volcanic and surficial sedimentary deposits. The color scheme is based on the ages of the volcanic deposits. Warm colors (red, pink, and orange) represent recent epochs of time while cool colors (blue and purple) represent older deposits.

From the geologic record, we can deduce several generalized facts about the geologic history of Mauna Loa’s southeast flank. For example, geologic mapping and radiocarbon ages of the flows indicate that there was a period of sustained summit activity from about 2,000 to 1,300 years before present. Lava flows of this age cover more than 75 percent of the area directly downslope from the summit in this new map.

There are a few kīpuka of older flows, but they are limited in number and extent. This means that Mauna Loa experienced approximately 700 years of nearly continuous activity, significantly longer than the 35-year-long eruption that occurred on Kīlauea in 1983-2018!

Other interesting tidbits gleaned from the new map include the following:

About 55 percent of the map area is covered by layers of volcanic ash of varying thicknesses, which indicate explosive volcanic eruptions. The ages and origins of these ash deposits still need to be determined.

An historically active tectonic zone on the southeast flank of Mauna Loa, known as the Ka‘ōiki Fault Zone, is the site of some recent large tectonic earthquakes. In 1983, a magnitude-6.6 earthquake on the Ka‘ōiki Fault Zone preceded Mauna Loa’s 1984 eruption. Earthquakes greater than magnitude-5.5 also occurred there in 1974, 1963, and 1962.

The “Geologic map of the central-southeast flank of Mauna Loa volcano” provides fundamental information on the long-term eruptive behavior of Mauna Loa volcano. It also offers valuable base information on which collaborative studies in geology and biology can be launched. The map can be viewed or freely downloaded from the USGS Publications website at https://pubs.er.usgs.gov/publication/sim2932B.
